A review paper published in Science of The Total Environment provides a comprehensive overview of advancements in using drones to monitor methane (CH4) emissions from landfills over the past decade. The researchers aimed to highlight the potential of unmanned aerial vehicles (UAVs) as accurate and cost-effective tools for quantifying CH4, a major contributor to greenhouse gas emissions.

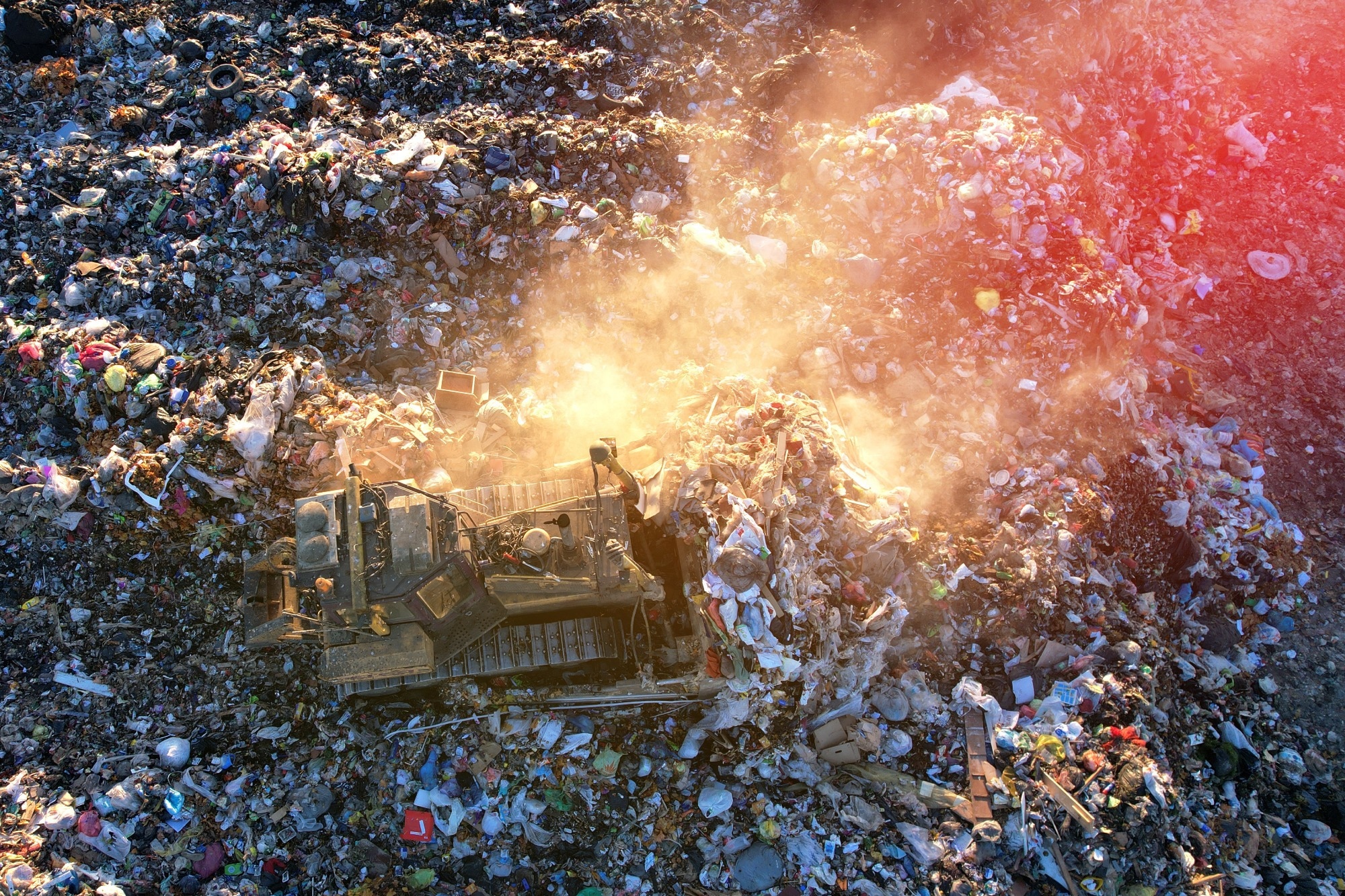

Study: Progress in monitoring methane emissions from landfills using drones: an overview of the last ten years. Image Credit: Maksim Safaniuk/Shutterstock.com
Technological Advancements in Methane Detection
CH4 is a potent greenhouse gas with a far greater climate impact than carbon dioxide (CO2). Landfills are a major source of human-made CH4 emissions, but traditional monitoring methods often fall short due to their limited spatial and temporal coverage, leading to inaccuracies.
Recent advancements in sensor miniaturization have enabled the integration of CH4 detection sensors with UAVs, offering a modern alternative to conventional monitoring methods. These drones can quickly and cost-effectively measure emissions, generating high-resolution data, making them highly suitable for monitoring CH4 emissions from landfills.
UAV-Based Emission Monitoring
In this paper, the authors reviewed UAV-based methods for measuring CH4 emissions from landfills, analyzing publications from 2014 to 2024. The review focused on technologies that have gained acceptance as well as those still under testing.
The study covered a range of research, including landfill experiments, controlled-release tests, and theoretical articles on quantification methods. However, studies using inverse modeling were excluded due to their incompatibility with landfill emission profiles.
The review evaluated various UAV-based approaches, outlining their strengths and limitations. It also highlighted the current state of research, emphasizing the need for more field trials and further refinement of methodologies.
Methodologies and Approaches
The researchers classified UAV-based methods into two main approaches: direct and indirect. Direct methods measure CH4 concentrations and process the data to calculate emission fluxes, including techniques like the Vertical Flux Plane (VFP), Nadiral Path Integrated VFP (NPI-VFP), and Slunt Path Integrated VFP (SPI-VFP). Indirect methods, such as Thermal Imaging (TIA), monitor physical factors like surface temperature and link them to CH4 emission rates.
The study also compared various UAV platforms, such as fixed-wing drones and multicopters, each offering distinct strengths and weaknesses. Fixed-wing drones can cover large areas efficiently but require runways for takeoff and landing. On the other hand, multicopters provide superior maneuverability and the ability to hover in place, making them ideal for more localized monitoring. The choice of UAV depends on the operational context and the specific demands of the monitoring task.
Key Findings and Insights
The review found that UAV-based techniques for quantifying CH4 emissions remain in the experimental stage, with only a limited number of real-world tests conducted at landfills. Since 2018, there has been growing interest in open-path sensors, which have shown promising results in controlled-release experiments. However, field testing has been sparse, and the uncertainties around these methods are still not well understood.
Direct methods, especially the VFP approach, have seen more extensive testing and development. These techniques measure CH4 concentrations at specific points on a vertical plane downwind from the emission source, with the data processed through algorithms to estimate emission fluxes. The NPI-VFP and SPI-VFP methods, which use open-path sensors to measure CH4 concentrations, are still in the experimental phase.
Indirect methods, such as TIA, have potential for detecting CH4 hotspots on landfill surfaces. However, these approaches need further refinement and validation to improve accuracy and reliability. The authors emphasized the need for more field trials and real-world testing to better understand the uncertainties in UAV-based CH4 measurement techniques.
Practical Implications and Future Directions
Using UAVs for CH4 emission monitoring offers several practical benefits in landfill management. Drones can provide high-resolution data on CH4 concentrations, enabling operators to identify hotspots and take corrective actions. This can enhance the efficiency of methane capture systems and reduce the environmental impact of landfills.
UAV-based methods also complement traditional techniques, offering a more comprehensive perspective on CH4 emissions. Additionally, these methods can significantly reduce the costs and labor associated with conventional monitoring approaches.
Despite these advantages, the authors emphasized the need for further research to refine UAV-based techniques. Future efforts should prioritize conducting more field trials in real landfill environments to validate these methods. Developing standardized protocols for UAV-based CH4 monitoring will also be essential to ensure consistent and reliable data collection and analysis.
Conclusion
In summary, the review highlighted the potential of UAV-based methods for monitoring CH4 emissions from landfills. These methods could significantly improve the understanding of CH4 emissions and help develop strategies to mitigate their impact on climate change.
Although these techniques have advantages over traditional methods, they remain experimental and require further validation. As sensor technology and data processing continue to improve, UAVs could play a key role in reducing CH4 emissions from landfills and mitigating their impact on the climate.
Journal Reference
Fosco, D., & et, al. Progress in monitoring methane emissions from landfills using drones: an overview of the last ten years. Science of The Total Environment, 2024, 945, 173981. DOI: 10.1016/j.scitotenv.2024.173981, https://www.sciencedirect.com/science/article/pii/S0048969724041299
