Oct 28 2016

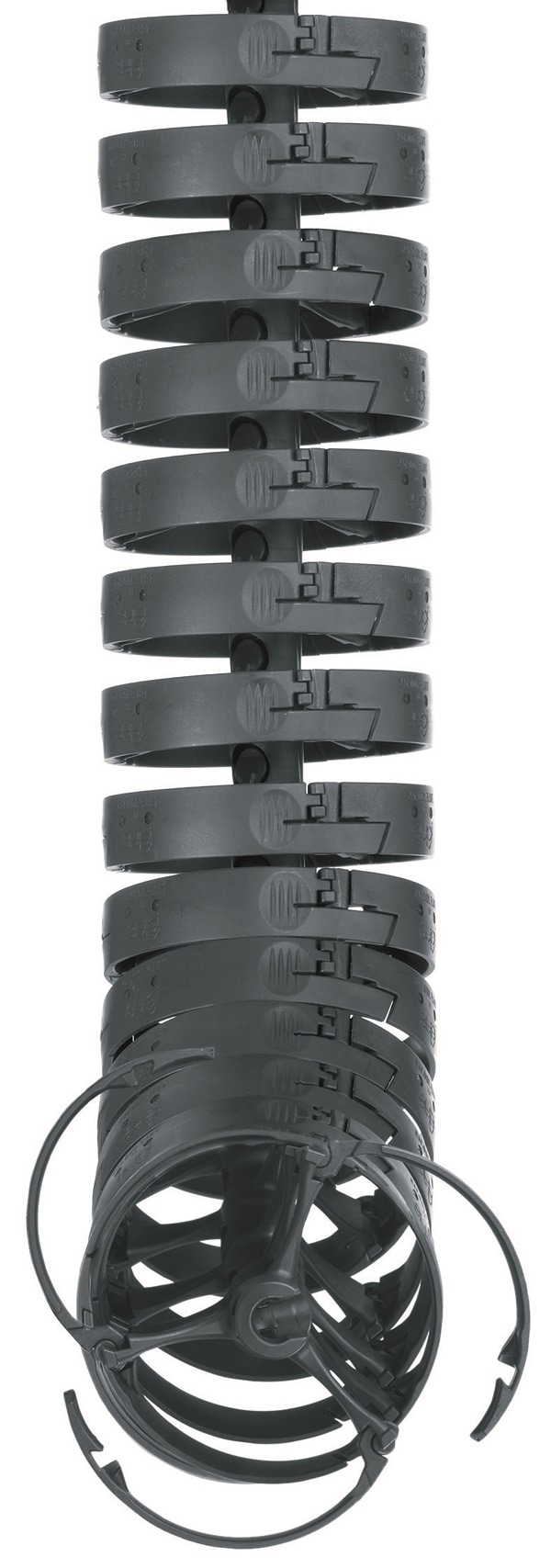

igus, the motion plastics specialist, has launched triflex TRLF.125, extending the TRLF family to include its largest 125mm nominal diameter e-chain, in addition to existing 65, 87.5 and 100mm internal diameter sizes. These TRLF energy chains are ideally suited for robotics and other applications that require electrical power cables, data cables and hoses to remain secure and protected during multi-axis movement.
With this new 125mm size, even stiff or large hoses, or indeed large numbers of individual cables, can be inserted quickly and easily, reducing labour costs and assembly time.
The mechanical design of TRLF has three internal chambers to separate power, data and hoses and ensure reliable guidance while avoiding damage during torsional movement. The design provides a defined bend radius and a maximum torsion of approximately +/- 200 degrees per metre of chain.
To add or remove cables or hoses, each link can be opened manually or by screwdriver to facilitate rapid filling, modification or maintenance. As the TRLF system does not utilise any internal steel cables or spring elements, additional links can be easily added or removed via a simple ball and socket joint. igumid G material is used in the TRLF chain to provide strength, yet still remain lightweight.
For further information about triflex TRLF.125, please visit: www.igus.co.uk/e-chaintriflexrobot or call igus directly on 01604 677240. Follow us at twitter.com/igusUK, watch our videos at www.igus.co.uk/YouTube, connect with us at www.igus.co.uk/Facebook and read our blog on blog.igus.co.uk
