Survivors of stroke or other neurological conditions such as spinal cord injuries, traumatic brain injuries and Parkinson’s disease often struggle with mobility. To regain their motor functions, these patients are required to undergo physical therapy sessions. A team of researchers from the National University of Singapore’s (NUS) Faculty of Engineering has invented a novel robotic walker that helps patients carry out therapy sessions to regain their leg movements and natural gait. The system also increases productivity of physiotherapists and improves the quality of rehabilitation sessions.

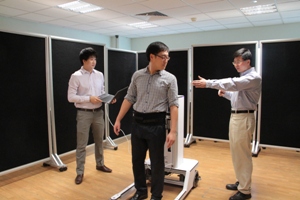

Novel robotic walker invented by team of researchers led by Assistant Professor Yu Haoyong (far right) from the Department of Biomedical Engineering at the National University of Singapore Faculty of Engineering
Designed by a team of researchers led by Assistant Professor Yu Haoyong from the NUS Department of Biomedical Engineering, the robotic walker is capable of supporting a patient’s weight while providing the right amount of force at the pelvis of the patient to help the patient walk with a natural gait. In addition, quantitative data can be collected during the therapy sessions so that doctors and physiotherapists can monitor the progress of the patient’s rehabilitation.
Improving therapy outcomes with robotic aid
The robotic walker comprises six modules: an omni-directional mobile platform; an active body weight support unit; a pelvic and trunk motion support unit; a suite of body sensors; a functional electrical stimulation unit; and an intuitive user control interface.
The suite of body sensors measure the gait of the patient so that the walker can provide the right amount of support to help the patient walk with a natural gait. The electrical stimulation unit can deliver targeted electrical current to stimulate the correct muscle at the correct timing to facilitate joint movement. The walker can also provide assistive force, resistive force, and disturbance force depending on the training requirements set by the therapists. In this way, patients can go through different training schemes that are often difficult to achieve manually. The patient interacts with the walker through a force sensor which detects the user intent. The intelligent control system uses this information as well as the gait information provided by the body sensors to control the movement of the walker. Another unique feature of this walker is that it allows the patient to practice gait movements by walking over ground instead of on a treadmill. Such features enable the gait training to be conducted in a natural and intuitive way for the patients.
Asst Prof Yu explained, “This robotic walker allows patients to practice their gait movements continuously to optimise their therapy. When patients repeat the movements in a natural setting, the routine can be imprinted into their brains which gradually learn to correct from the damage resulting from their medical conditions.”
In addition, the robotic walker is capable of collecting data on the gait kinematics and muscle activation pattern of the patient. Such information is useful for doctors and therapists to monitor the progress of the patients’ recovery.
A robotic helper for physiotherapists
Besides improving the quality of rehabilitation sessions, the robotic walker will also relieve physiotherapists from the physical strain of assisting patients with the exercises.
Currently, gait training requires one or two physiotherapists to support the patient’s body weight and trunk, and an additional physiotherapist may be needed to move the paretic leg. Such therapy sessions are labour intensive, and they are also ergonomically unfavourable for the physiotherapists as they often suffer from back injuries. This limits the quality, duration and frequency of rehabilitation sessions.
With the robotic walker, manual therapy can be taken over by the robotic system, while physiotherapists can focus on providing better assessment and training guidance for patients. The device also reduces the number of physiotherapists needed to conduct each rehabilitation session, thereby increasing productivity and reducing the cost of care.
Clinical studies and commericalisation
Asst Prof Yu is collaborating with homegrown company Hope Technik to fine-tune the robotic walker. He is also planning to conduct clinical studies to validate the training effects on patients and to develop novel therapy regimes together with clinicians at the National University Hospital. There are also plans to commercialise the device with Hope Technik.
“Our vision is for the robotic walker to be installed at outpatient clinics and rehabilitation centres to benefit patients who need therapy sessions. There is also a possibility that patients can perform exercises in the comfort of their own homes,” said Asst Prof Yu.
The Roboship research is funded by the German-Dutch INTERREG IVA subsidy programme.
