AR and Digital Twins Improve EV Battery Disassembly

A research paper recently published in the journal Batteries introduced a novel robotic teleoperation system that combines augmented reality (AR) and digital twin (DT) technologies for disassembling end-of-life (EoL) electric vehicle (EV) batteries. This innovative approach aims to address the challenges associated with EV battery disposal and recycling, particularly as the adoption of EVs continues to rise.



AR and Digital Twins Improve EV Battery Disassembly

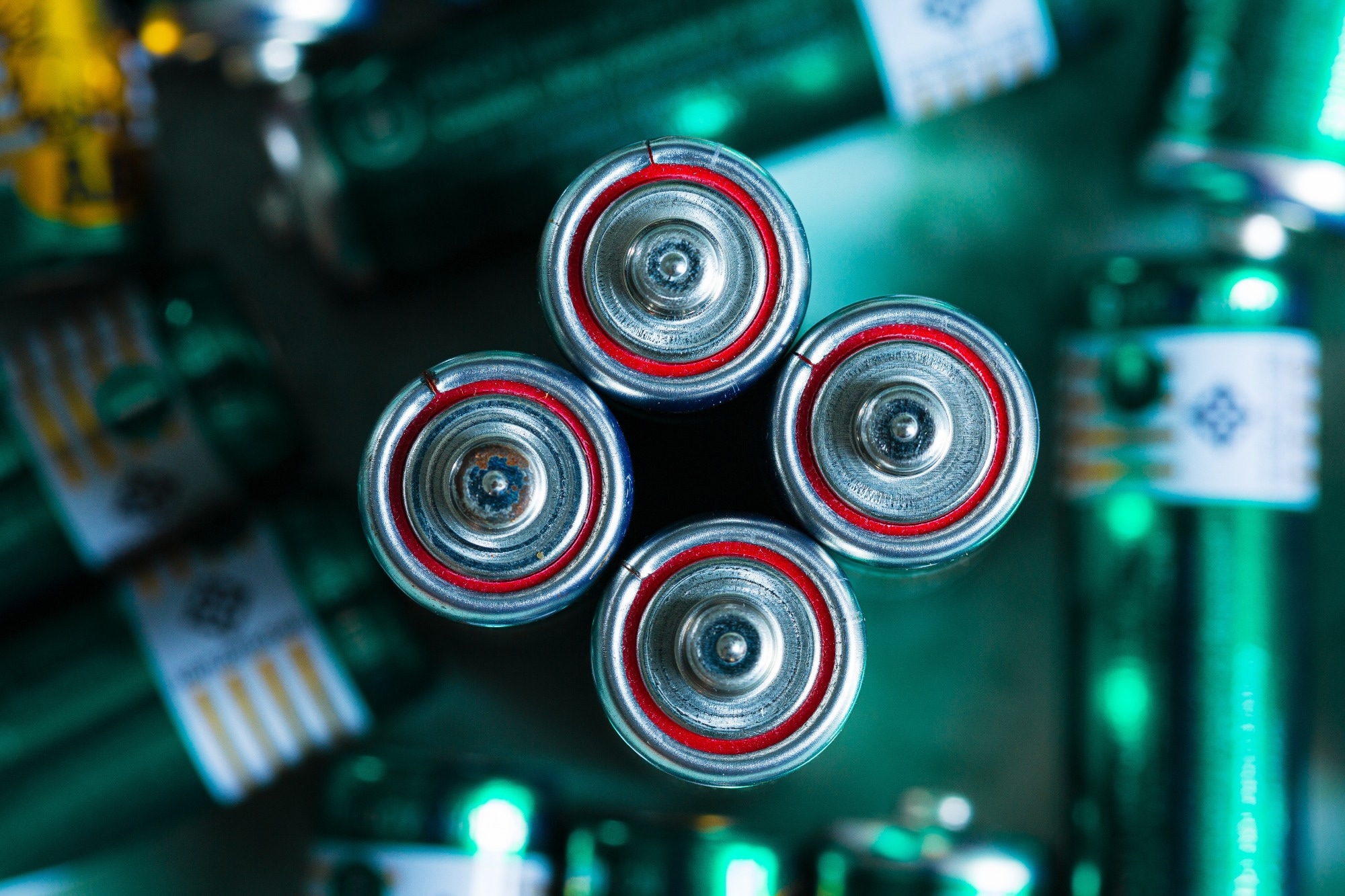

Study: A Robotic Teleoperation System with Integrated Augmented Reality and Digital Twin Technologies for Disassembling End-of-Life Batteries. Image Credit: banjongseal324SS/Shutterstock.com

Augmented Reality and Digital Twins

The rapid increase in EV usage has led to a surge in EoL lithium-ion batteries. Managing these batteries poses significant environmental challenges due to the hazardous materials they contain, which can cause serious risks if improperly disposed of. Traditional disposal methods, such as landfilling, not only fail to recover valuable materials but also pose severe environmental threats. Remanufacturing offers a sustainable alternative by restoring used products to their original quality, but effective disassembly is crucial for its success.

Integrating AR and DT technologies has transformative potential to enhance the efficiency and safety of robotic disassembly operations. AR enhances human-machine interaction by overlaying digital information onto the physical environment, thereby providing intuitive control and real-time feedback. Meanwhile, DT technology creates accurate digital replicas of physical systems, enabling real-time monitoring and predictive analysis. Together, these technologies offer a more interactive and informed approach to robotic operations, particularly for complex tasks like battery disassembly.

Using AR and DT for EoL Battery Disposal

In this paper, the authors developed a robotic teleoperation system for disassembling EoL EV batteries using AR and DT technologies. They implemented a bidirectional communication framework between the physical robot and its DT to enable real-time synchronization of movements and operational data. This integration is supported by an architecture that combines various software and hardware components.

The system leverages the Robot Operating System (ROS) for communication, Unity3D software for creating the virtual model, and Vuforia for AR capabilities. The physical robot was the KUKA LBR IIWA 14 R820, equipped with a Robotiq 2F-140 gripper.

Operators interacted with the robot's DT through the Microsoft HoloLens 2 AR interface, which allowed them to visualize the robot and control it using intuitive gestures. The study followed detailed protocols for data collection, processing, and visualization to ensure the virtual representation accurately reflected the physical robot’s state during disassembly tasks.

During operation, the physical robot continuously collected sensor data, which was processed and sent to a workstation for calibration and classification. These data were then relayed to the DT, ensuring it accurately reflected the robot’s movements. The AR interface displayed critical information like joint positions, velocities, and torques alongside the virtual robot, providing operators with a full view of the robot’s status and task progress.

Additionally, the system incorporated advanced gesture recognition capabilities, allowing operators to interact with the virtual robot intuitively. By utilizing the Microsoft Mixed Reality Toolkit (MRTK), operators could select and manipulate the robot’s end effector using natural gestures, significantly enhancing both user experience and operational efficiency.

Key Findings and Insights

The study demonstrated that the AR-enhanced control system significantly improved the efficiency of robotic disassembly tasks. In a practical case, operators used the system to remove a busbar from an EoL plug-in hybrid EV battery.

The AR-enhanced method achieved an average task completion time of 29.7 seconds, which was faster than the AR-based method without detailed information (42.05 seconds) and the smartpad control method (65.75 seconds). The integration of real-time feedback allowed operators to make informed adjustments, thereby improving safety and efficiency. Statistical analysis confirmed significant differences in completion times, highlighting the importance of real-time information provided by the AR interface.

Furthermore, the authors employed the NASA Raw Task Load Index (NASA RTLX) to assess the perceived workload among operators across different control methods. The AR-enhanced technique achieved an average score of 38.24, indicating reduced mental demand, effort, and frustration compared to the other methods. The study also emphasized the importance of real-time monitoring of joint torque and other key parameters, enabling operators to promptly address issues and maintain smooth disassembly progress.

Applications

This robotic framework can be applied not only to EV battery disassembly but also adapted for use in other industrial sectors, especially those involving complex or hazardous tasks. It is particularly suitable for manufacturing environments where precision and safety are critical, such as assembly lines or heavy machinery maintenance.

Additionally, this research can help develop training programs for operators, allowing them to gain hands-on experience in a virtual environment before working with physical robots. This approach can enhance confidence and reduce the risk of errors during actual operations.

Conclusion and Future Directions

In summary, the robotic system effectively improved the efficiency and accuracy of disassembling EoL EV batteries. By creating a DT of the physical robot and synchronizing it with real-time data, it enhanced operational efficiency and safety. The outcomes showed significant improvements in task completion times and reduced operator workload, highlighting the potential of this technology to transform robotic operations.

Future work should focus on refining the system’s capabilities, particularly in improving positioning accuracy and expanding its use in heavy equipment. Integrating machine learning algorithms and advanced sensor technologies could further optimize performance, paving the way for applications in robotic teleoperation across diverse industries.
