Reviewed by Lexie CornerSep 16 2024
Recent research carried out by scientists from the Chinese Academy of Sciences highlights the potential of U-Net for tasks like small target detection, sea ice prediction, and image reconstruction. The study was published in the Journal of Remote Sensing.

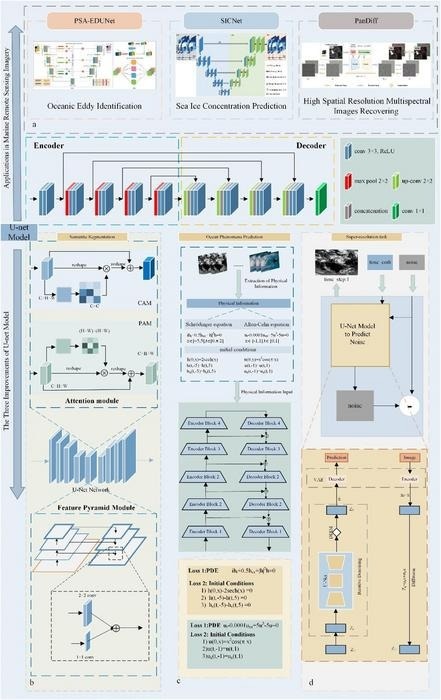

(A) Standard U-Net framework and its current applications. (B) Proposed advancements in U-Net for semantic segmentation tasks within ocean remote sensing. (C) Enhancement strategies for U-Net in ocean remote sensing forecasting tasks. (D) Approaches for improving U-Net in super-resolution reconstruction tasks specific to ocean remote sensing. Image Credit: Haoyu Wang, Institute of Oceanology, Chinese Academy of Sciences
U-Net, a convolutional neural network (CNN) originally designed for medical applications, could have a transformative impact on the field of ocean remote sensing.
In today's world, technology and artificial intelligence (AI) are increasingly being used to tackle complex problems. U-Net, a tool developed to extract specific "objects" from medical images, is now being explored as a potential research tool in oceanography. While promising, U-Net is not without its limitations. Significant enhancements are required to fully adapt it for ocean remote sensing.
Although U-Net’s structure provides a strong foundation for oceanographic research, it currently falls short of meeting researchers' needs. To overcome these challenges, three key improvements are necessary: enhancing its capabilities in forecasting, super-resolution, and segmentation, which involves classifying every pixel in an image.
Through structural improvement and the introduction of new techniques, the U-Net model can gain significant improvement in small target detection, prediction accuracy, and image reconstruction quality, further promoting the development of ocean remote sensing research.
Haoyu Wang, Author and Researcher, Institute of Oceanology, Chinese Academy of Sciences
Enhancing semantic segmentation in the U-Net model can significantly improve its ability to identify and recognize small objects in the water by incorporating attention mechanisms. This would allow the model to detect and differentiate distant pixels more effectively. For example, distinguishing between oceanic ice formations and open seas is crucial, and U-Net is capable of making such distinctions.
"Forecasting tasks" refer to a model's ability to make data-driven predictions about the future based on physical knowledge. One success story in oceanic remote sensing is the Sea Ice Prediction Network (SIPNet), which used the U-Net model to forecast Antarctic sea ice concentration.
SIPNet, like U-Net, employs an "encoder-decoder" neural network design, where the encoder processes an input sequence, and the decoder reconstructs it. In SIPNet's case, the model forecasted sea ice concentration for the next eight weeks using data from the previous eight weeks.
The accuracy of U-Net models, when fully equipped for a task, is demonstrated by the less than 3 % average difference between the prediction and actual measurement for a seven-day forecast. This was achieved by pairing the encoder-decoder architecture with a temporal-spatial attention module (TSAM).
For super-resolution applications, the use of a diffusion model is recommended to reduce image blurring or "noise." The goal is to establish a relationship between high- and low-resolution images, eliminating noise by identifying their similarities.
Another crucial aspect is enhancing the model's ability to extract features from images. Researchers suggest utilizing a model called PanDiff, which combines low-resolution multispectral images (capturing information across various spectrums like ultraviolet and infrared) with high-resolution panchromatic images (sensitive to all visible colors). This combined data is reconstructed by U-Net using random noise to improve image clarity.
To fully meet the long-term objectives of researchers, further optimization of the U-Net model is necessary.
The U-Net model’s straightforward and understandable network architecture and superior model fitting capabilities have garnered the most popularity among researchers in the ocean remote sensing community, demonstrating great potential.
Xiaofeng Li, Study Researcher and Author, Institute of Oceanology, Chinese Academy of Sciences
Apart from the enhancements that scholars propose for employing U-Net in oceanic research, there remains ample opportunity to investigate the integration of U-Net with alternative methods or platforms to expand the model's already extensive use.
This work was supported in part by Haoyu Wang of the University of Chinese Academy of Sciences and Xiaofeng Li of the Chinese Academy of Sciences Institute of Oceanology.
The study was supported by the National Natural Science Foundation of China and the Strategic Priority Research Program of the Chinese Academy of Sciences.
Journal Reference:
Wang, H., et al. (2024) Expanding Horizons: U-Net Enhancements for Segmentation, Forecasting, and Super-Resolution in Ocean Remote Sensing. Journal of Remote Sensing. doi.org/10.34133/remotesensing.0196.
