In a recent study published in the journal Robotics, researchers introduced the Laboratory for Automation and Robotics' Collaborative Cell (LARCC), a novel manufacturing cell that integrates learning-based technologies to enhance human-robot interaction (HRI). The aim was to meet the growing need for effective human-robot collaboration (HRC) in industrial settings, where robots and humans work together seamlessly.

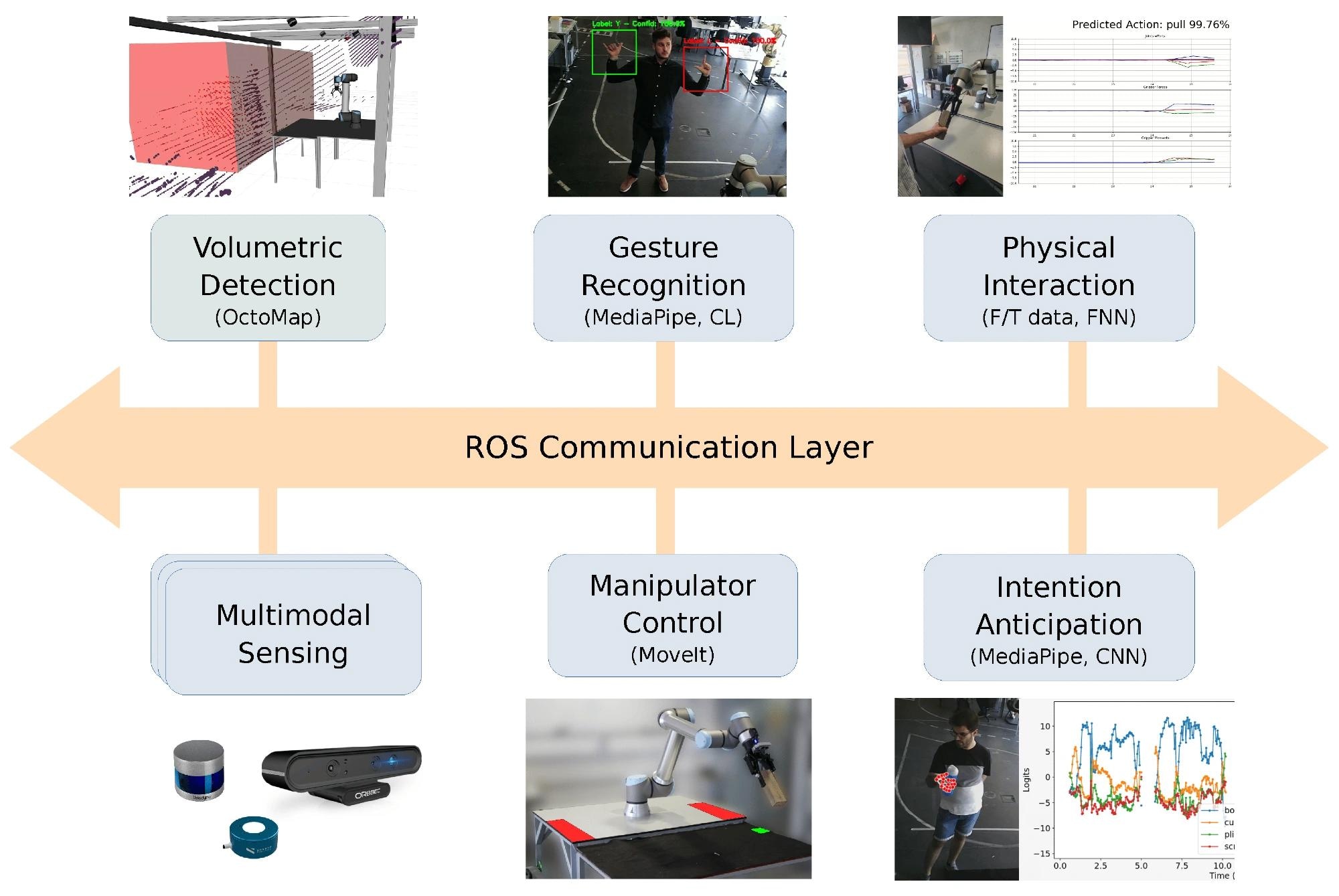

Overview of the system architecture. Image Credit: https://www.mdpi.com/2218-6581/13/7/107
Background
Industry 5.0 emphasizes developing human-centric systems that promote collaboration between humans and robots. This shift is driven by the need for flexible and adaptable production processes where humans and robots work together to perform complex tasks. HRC offers many advantages, including improved efficiency, productivity, and safety, while addressing traditional automation's limitations.
However, integrating robots into industrial environments presents challenges, particularly in ensuring safety and developing intuitive communication interfaces. Collaborative robots must interact with humans safely, minimizing the risk of injuries or accidents. This requires robust safety mechanisms, real-time risk monitoring, advanced sensing technologies, and adaptive control strategies. Additionally, robots need to understand and respond to users through communication channels, including vision, speech, touch, and haptic feedback.
About the Research
In this paper, the authors developed a prototype collaborative manufacturing cell, LARCC, designed to enable effective human-robot collaboration (HRC) in real-time industrial scenarios. This cell integrates various technologies, including multimodal sensors such as light detection and ranging (LiDAR) and three-dimensional (3D) cameras, to provide comprehensive environmental awareness.
A UR10e collaborative robot, equipped with a Robotiq 2F gripper, facilitates object manipulation and human interaction. The system architecture is based on Robot Operating System (ROS) middleware, which supports modularity, reusability, and seamless communication between different modules.
The study in question focuses on developing four core interaction capabilities to enhance natural and efficient collaboration between the human operator and the robotic system: hand gesture recognition, physical interaction classification, volumetric detection, and human intention anticipation.
Hand gesture recognition utilizes computer vision and deep neural networks, enabling the human operator to communicate intentions to the robot through intuitive gestures. Physical interaction classification employs a learning-based approach to identify the human operator's physical interactions with the robot, such as pulling, pushing, shaking, and twisting, which facilitates smoother and more natural object handovers.
Volumetric detection uses an occupancy mapping framework based on OctoMap to monitor the presence and movement of the human operator within the collaborative workspace, ensuring safety and situational awareness. Human intention anticipation leverages deep learning techniques to identify the object being manipulated by the human operator, allowing the robot to anticipate the operator's needs and provide proactive assistance.
Research Findings
The results indicate that the proposed interaction capabilities significantly enhance human-robot collaboration (HRC). Specifically:
- Hand Gesture Recognition: This module demonstrated high accuracy and real-time performance, achieving an inference rate of 20 frames per second.
- Physical Interaction Classification: The model accurately differentiated between defined contact primitives, even amid multiple consecutive interactions.
- Volumetric Detection: This system reliably monitored the shared workspace, allowing the robot to adapt its movements and behavior to maintain the safety of the human operator.
- Human Intention Anticipation: The module effectively identified the object being grasped by the operator and showed promising results in predicting the user’s needs, enabling the robot to provide proactive assistance.
Applications
This research has substantial implications for transforming industrial workflows and enhancing HRC. The proposed approach is applicable across a range of domains, including assembly, manufacturing, and material handling. Its flexibility, adaptability, and safety features also make it well-suited for various industrial applications.
The integration of core interaction abilities into a comprehensive solution demonstrates their effectiveness for complex applications. The authors specifically tailored their approach to industrial use cases, such as palletizing tasks, showcasing the system's adaptability to real-time operations.
Conclusion
In summary, the novel collaborative cell proved effective in enhancing HRC by addressing key challenges related to safety, communication, and proactive assistance. By integrating advanced sensing technologies, learning-based decision models, and a flexible control architecture, the researchers developed a system capable of adapting to the dynamic and often unpredictable nature of human interactions. The successful implementation and validation of the proposed interaction abilities, both individually and in an integrated application, underscore the practical relevance and potential of this approach.
Future work should focus on a comprehensive evaluation of user experience and system performance. This includes conducting user studies to assess usability and acceptance in practical settings, as well as quantitative assessments to measure the accuracy and response times of the individual modules. Such evaluations will provide robust evidence of the system's overall effectiveness and support ongoing research aimed at further improving HRC in industrial environments.
Journal Reference
Baptista, J.; Castro, A.; Gomes, M.; Amaral, P.; Santos, V.; Silva, F.; Oliveira, M. Human–Robot Collaborative Manufacturing Cell with Learning-Based Interaction Abilities. Robotics 2024, 13, 107. DOI: 10.3390/robotics13070107, https://www.mdpi.com/2218-6581/13/7/107
