Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is proud to launch the IPS960-511-PoE, its highly integrated vision controller optimized for machine vision applications. Featuring a multi-core CPU, IP40-rated rugged design, camera communication interfaces, real-time vision-specific I/O with microsecond-scale and LED lighting control, this machine vision controller provides an all-in-one solution that addresses the needs across various machine vision platforms and automatic inspection cases.

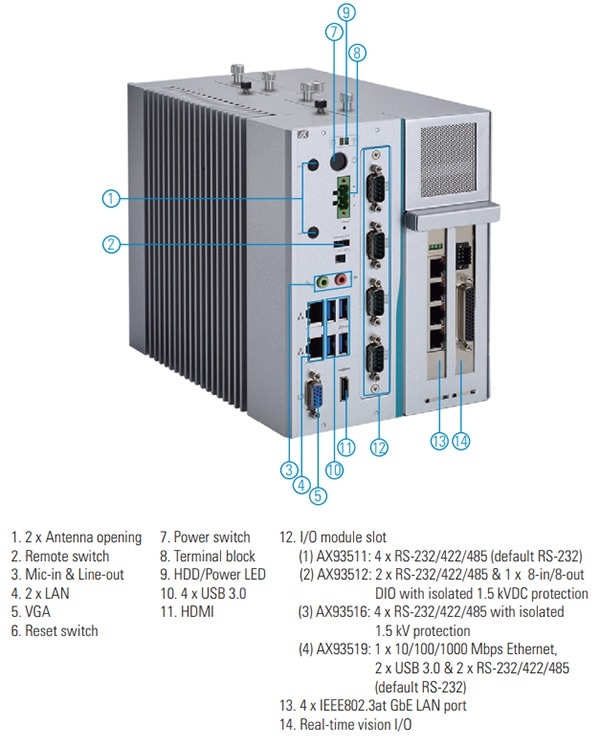

Axiomtek’s IPS960-511-PoE
Axiomtek’s IPS960-511-PoE is powered by the LGA1151 socket the 7th & 6th generation Intel® Core™ (codename: Kaby Lake/Skylake) and Celeron® processors (up to 65W) with the Intel® H110 chipset. The intelligent vision system comes with dual DDR4-2133/2400 un-buffered SO-DIMM sockets for up to 32GB of system memory as well as supports rich camera interfaces for connecting industrial cameras, including four IEEE802.3at PoE LAN ports and four USB 3.0 ports. Its vision I/O integrates a full range of isolated I/O interfaces and real-time controls essential to machine vision applications, including trigger input, LED lighting controller, camera trigger, as well as an encoder input for conveyor tracking. The IPS960-511-PoE also supports lighting dimming control to identify object characteristics for different inspection. Two easy-swappable 2.5" HDDs are available for extensive storage needs.
"The IPS960-511-PoE meets the increasing requirements for maximum quality and flexibility in modern production plants. It enables fast and accurate inspections of the products being assembled to ensure that the desired quality is achieved with no manufacturing defects. The Intel® Core™-based machine vision system provides operational control to devices to execute functions such as capturing and processing of images and measures various characteristics required for AOI applications," said Wayne Chung, a product manager of Product PM Division at Axiomtek.
To ensure reliable and stable performance in harsh environments, the highly flexible IPS960-511-PoE platform system supports a wide operating temperature range of -10°C to +55°C. Its easy setup and compact design allow easy installation in space-constraint environments. It comes with rich front-accessible I/O connectors, including two Gigabit LAN ports, four PoE ports, four USB 3.0 ports, one Real-time vision I/O, one VGA, one HDMI, one 3-pin terminal block, and one audio (Mic-in/Line-out). The IP40-rated IPS960-511-PoE comes with one I/O module slot with a choice of four different types of I/O modules – a 4-port RS-232/422/485 module (AX93511); a 4-port isolated RS-232/422/485 module (AX93516); an 1-port GbE Ethernet, 2-port USB 3.0 and 2-port RS-232/422/485 module (AX93519); and a 2-port isolated RS-232/422/485 and 8-in/8-out DIO module (AX93512).
Axiomtek's PoE machine vision system - IPS960-511-PoE is now available for purchase.
Advanced Features:
- Integrated real-time vision I/O
4-CH trigger input
4/8-CH trigger output
4-CH LED lighting control
1-CH quadrature encoder input
16-CH isolated DIO
1-CH auto measurement function
- Supports camera interfaces
4 IEEE802.3at GbE LAN ports (PoE)
4 USB 3.0 ports
- Power input: 24 VDC (uMin=19V/uMax=30V)
- -10°C to +55°C operating temperature range
- Supports 2 swappable 2.5" HDD
- Supports optional WLAN module & antenna
- Supports TPM 2.0 function
- Compact & front I/O design
